How to Export and Import a
Workflow Package in VMware vRealize Orchestrator
Workflow
packages are exactly what they sound like – a collection of workflows
compressed into a package format that can be imported on one or more target
servers. Actually, they’re a little more than that: they also contain
other components necessary for workflow dependencies such as actions,
configuration elements, and resource elements.
Workflow
packages are a good tool for distribution and backup of workflows on a source
(development) server. Once a package is created and exported from the
source server, it can be imported on a target server with ease. Target
servers could be test, staging, or production servers, or they could be
customer servers, meaning workflow packages can be used to distribute software
internally among an organization’s vRealize Orchestrator servers or external to
an organization’s customers
STEP 1: CREATE THE WORKFLOW
To
get started, we need to create an empty workflow package. We’ll then add
folders to capture all the workflows, actions, configuration elements, and
resource elements we want to be a part of the package.
Set the
vRealize Orchestrator client to Design mode by changing the mode drop-down at
the top left of the client.
Click the
Workflow Packages tab.
Click the Add
package button.
Name the
package, and hit the Ok button.
We now have an
empty workflow package.
STEP 2: EDIT THE
WORKFLOW PACKAGE
Now that the
workflow package has been created, we need to edit it and add all the goodies
to it.
With the newly
created package still selected, click the Edit button.
Add
Workflows to the Package
Click the
Workflows tab.
Click the Add
folder button.
Browse the
server workflow inventory for a target folder, select it and click the Select
button.
After the
packages have been added, verify the workflow item count.
Repeat this
process for all workflow folders containing workflows you would like to add to
the package.
Add
Actions to the Package
Click the
Actions tab.
Note the number
of actions already collected in the top right. If it is necessary to add
more actions to the package,click the Add folder (Insert Actions) button.
Browse for the
correct actions folder, select it, and click the Select button.
After adding
more actions, note the number of actions currently in the package.
Repeat this
process for as many action folders and actions as need to be added to the
package.
Add
Configuration Elements to the Package
Like actions,
any linked configuration elements that added workflows require in order to run
will already have been collected and added to the package. If you require
additional configuration elements to be added to the package, continue.
If not skip to the adding Resource Elements section.
Click the
Configuration tab.
Click the Add
folder button.
Browse for the
correct configuration element folder, select it, and click the Select button.
Note the new
number of configuration elements in the package, and repeat the process for all
configuration element folders and configuration elements that need to be added
to the package.
Add
Resource Elements
All linked
resource elements referenced by workflows will already be added to the
package. If you need to add additional resource elements, continue
on. Otherwise, skip to the Save and Close the Package section.
Click the
Resources tab.

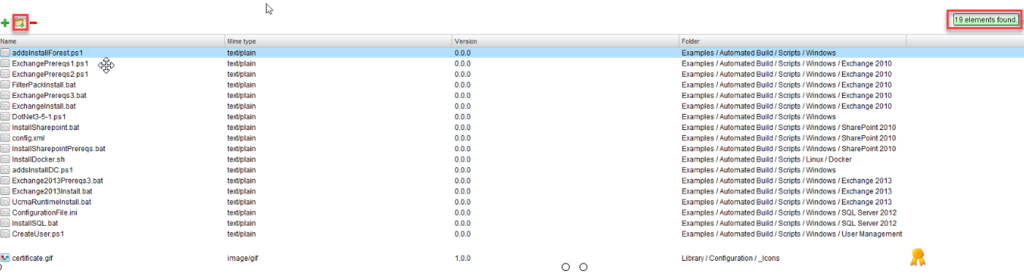

Note the
current number of resource elements already added to the package, and click the
Add folder button.
Browse for a
resource element folder, select it, and click the Select button. Note the
new number of resource elements in the package, and repeat the process for all
resource elements and resource element folders that need to be added to the
package.
Save
and Close the Workflow Package
Click the Save
and close button located in the bottom right-hand corner of the vRealize
Orchestrator client window.
STEP 3: EXPORT THE
WORKFLOW PACKAGE
Click the
Export Workflow button located at the top of the right-hand workflow package
inspector pane.
Name the
package file appropriately, select a local folder to save the file to, and
click the Save button.
The file is
exported to the selected location on the local filesystem.
STEP 4: IMPORT THE
WORKFLOW PACKAGE ON ANOTHER SERVER
From a vRealize
Orchestrator client connected to another server, enter the design mode.
Click the
Workflow Packages tab.
Click the
Import package button located at the top of the right-hand workflow package
inspector pane.
Browse for the
workflow package file on the local filesystem, select it, and click the Open
button.
Click through
any certificate popup windows.
Review the
items identified for import. Anything with a green arrow will be
imported; anything with a red arrow cannot be imported because of a
version/branch mismatch; anything with a gray arrow can be imported, but has
not been selected for import.
Click the
Import selected elements tab.
The import process
is started. Wait for it to complete.
Click the
Workflows tab, and browse the inventory for the newly imported workflow
package. Note the presence of all the imported workflows.
